Instruction manual for four frame honey extractor

Overview:

This machine is suitable for bee products industry. It is mainly to remove the two sides of the nest spleen (cover) after the honey spleen into the cage of the rocker, through the rotation of the cage (under the action of centrifugal force) honey spleen bee hive honey separated out of a device.

Boot Instructions:

1. Before using the machine, check whether there is any naked leakage of the external power line, and the motor does

No leakage phenomenon, so as to avoid electric shock accident.

2. Check whether the bolts and nuts on the machine are loose. If necessary, re-lock them with a wrench

3. Power on after checking.

Main technical parameters:

1. Voltage 220V frequency 50Hz

2. Motor power 140W

51 k140gu - CRF model

3. Speed ratio of 2GN-5K reducer is 1:5

4. Rotating speed of the cage 0-280 r/min

5. Overall size (L/W/H) 830/830/1250 mm

6. Package size (L/W/H) 510/510/910 mm

7. The weight after packaging is 24.5kg

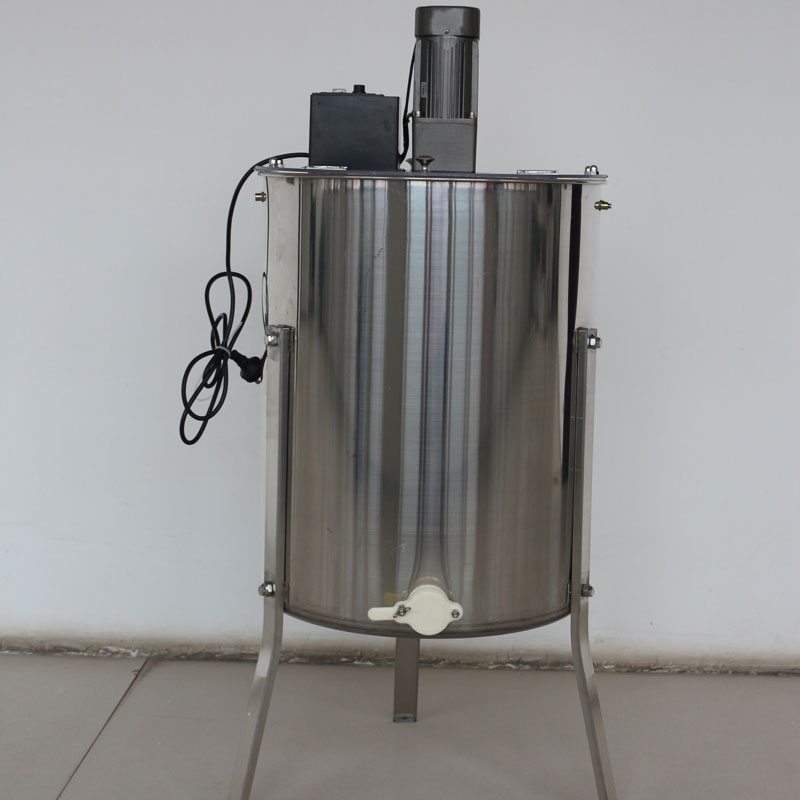

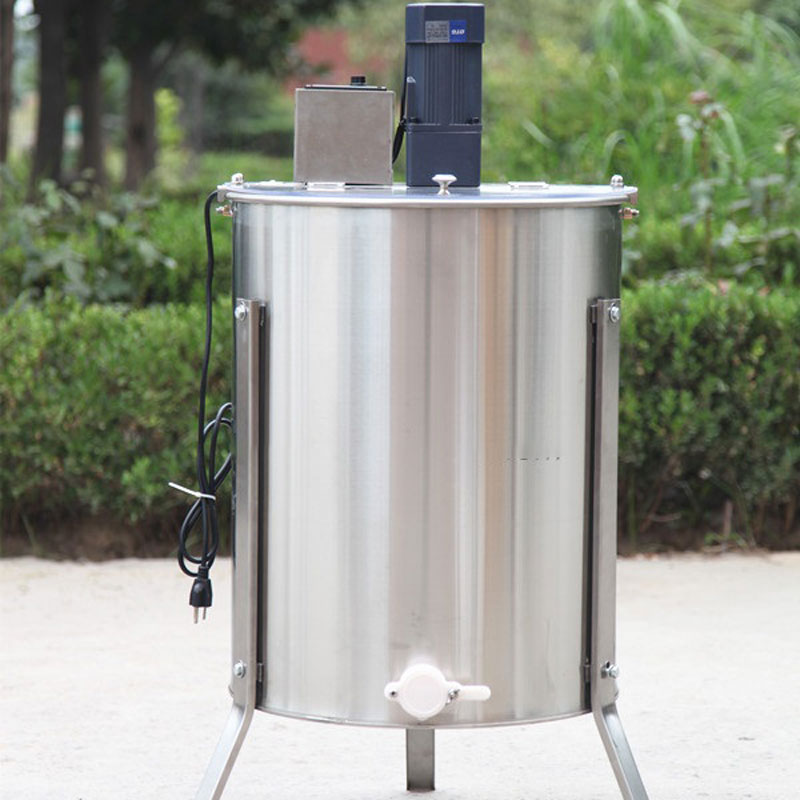

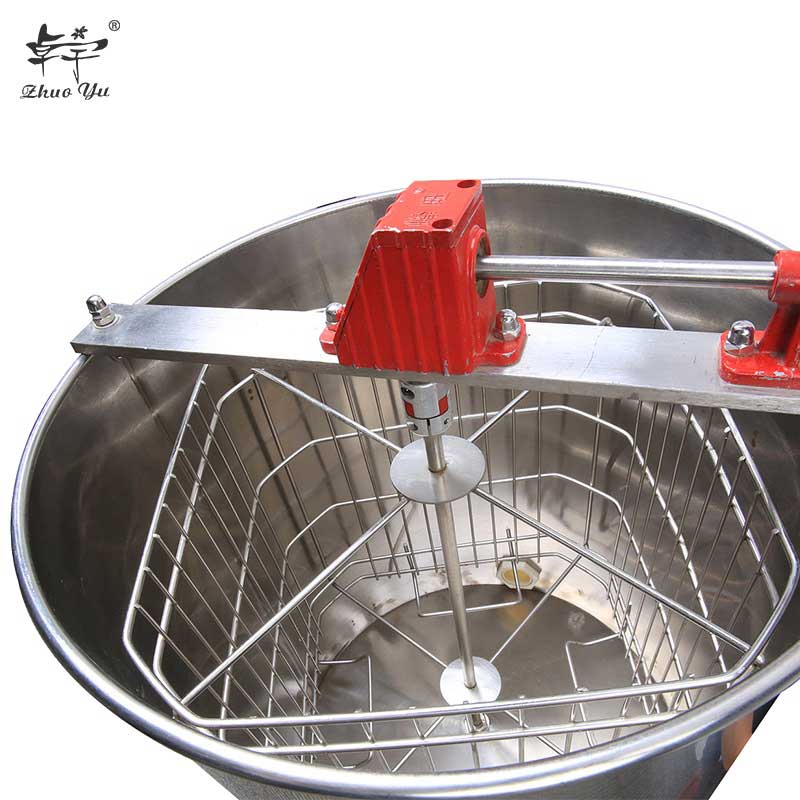

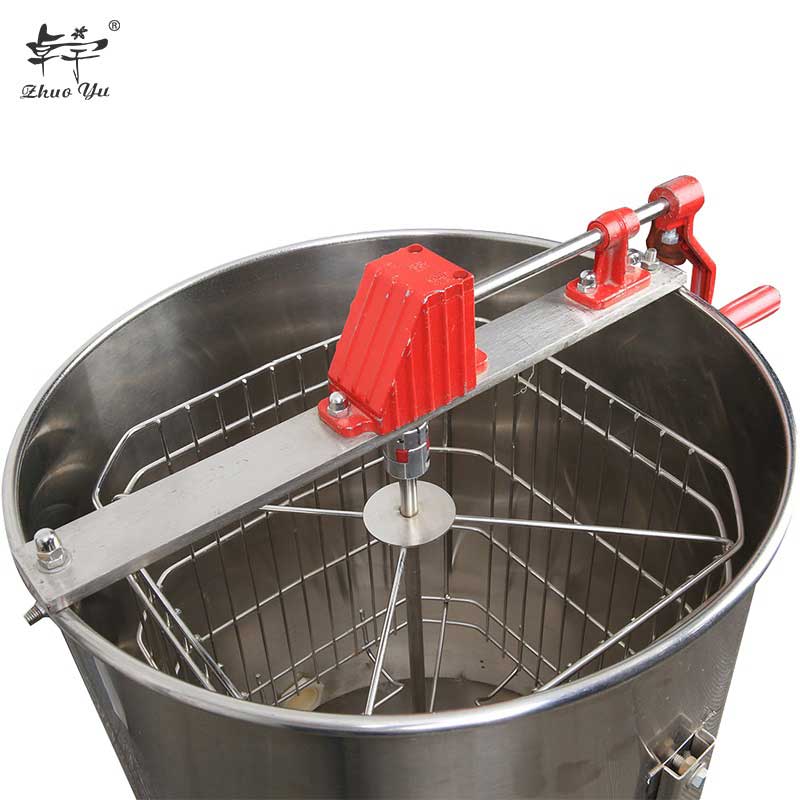

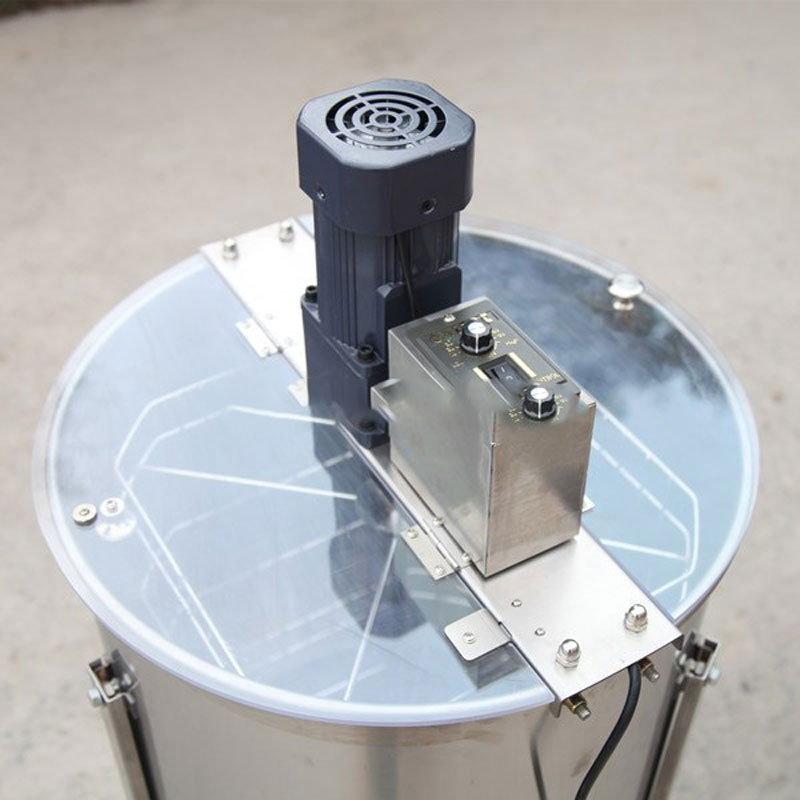

Machine Description (see figure)

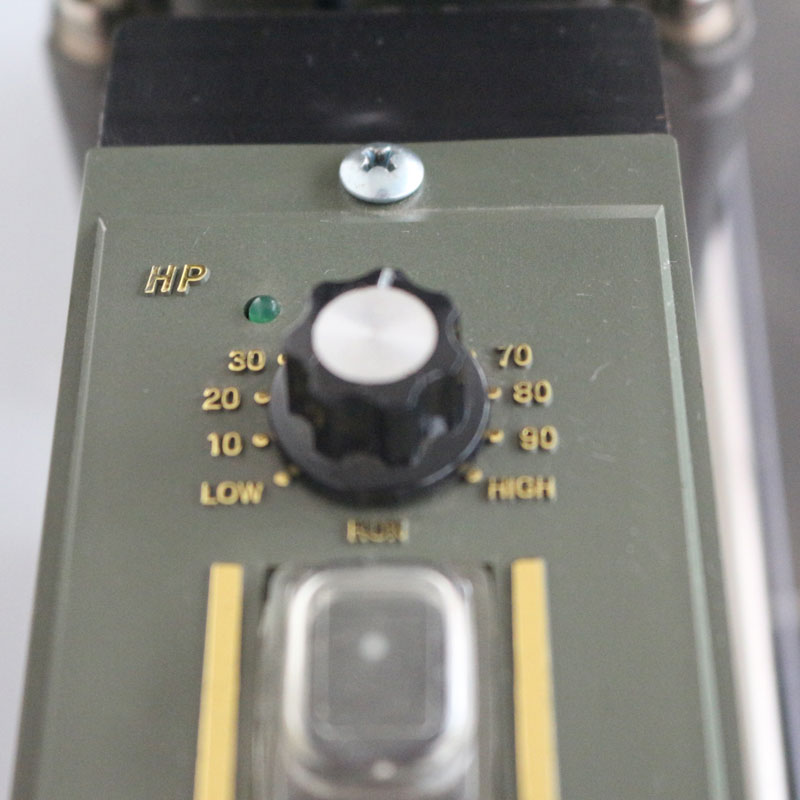

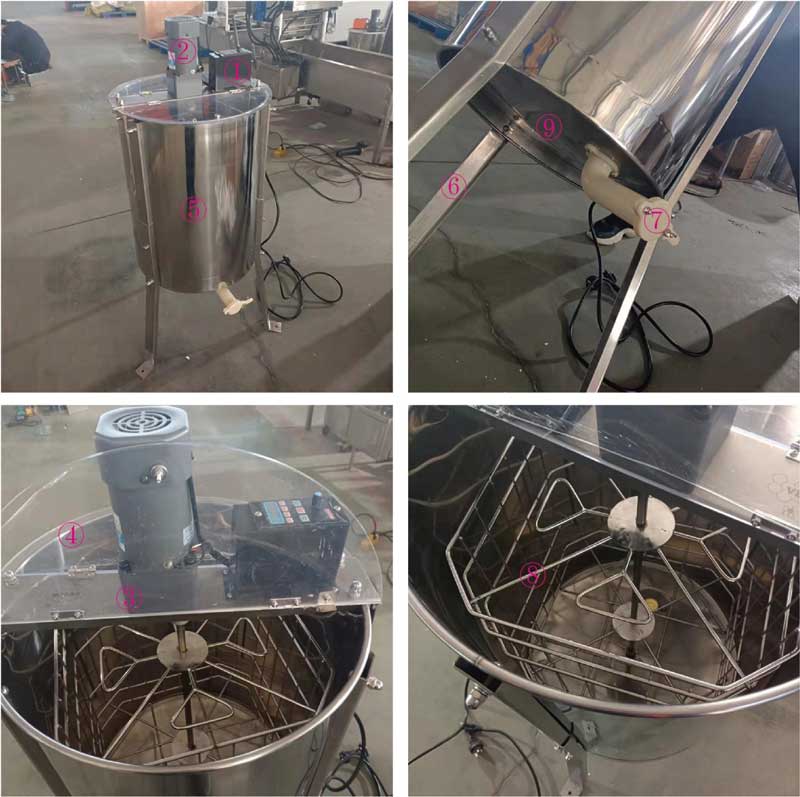

1. Governor 2. Motor 3. Barrel 6. Support leg 7. Honey flow mouth

8. Rotating cage 9 bottom

Operation precautions and maintenance

1. The operator shall not put his hands into the barrel during normal operation of the machine.

2.When the motor starts, accelerate slowly to high speed. Slow down when stopping.

3. Regularly check the temperature of the motor (no higher than 60°C)

Advantages

1. Adjustable speed, rotating speed 0-320 r/min

2. Rotating cage can realize positive and negative rotation.

3. Applicable to standard Bee spleen and small spleen (488/230/35 and 488/159/35)

4. The bottom of the barrel is inclined, which can better collect the honey to the lowest part of the bottom of the barrel, so that the honey is completely discharged.

5. The bending Angle of the flow mouth is greater than 90 degrees (conventional is 90 degrees).
