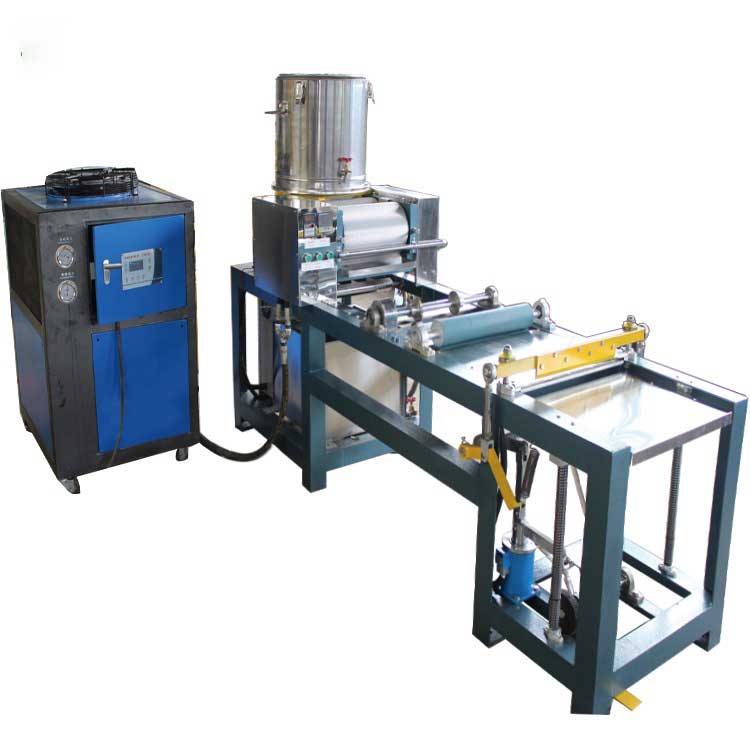

Fully Automatic Beeswax Honey Comb Foundation Roller Machine High Efficiency Beeswax Foundation Machine Aluminum Alloy

Description:

Name:fully automatic beeswax machine

Roller size:170*350mm or customized

Cell size:5.4mm(4.9mm or 5.1mm or as request)

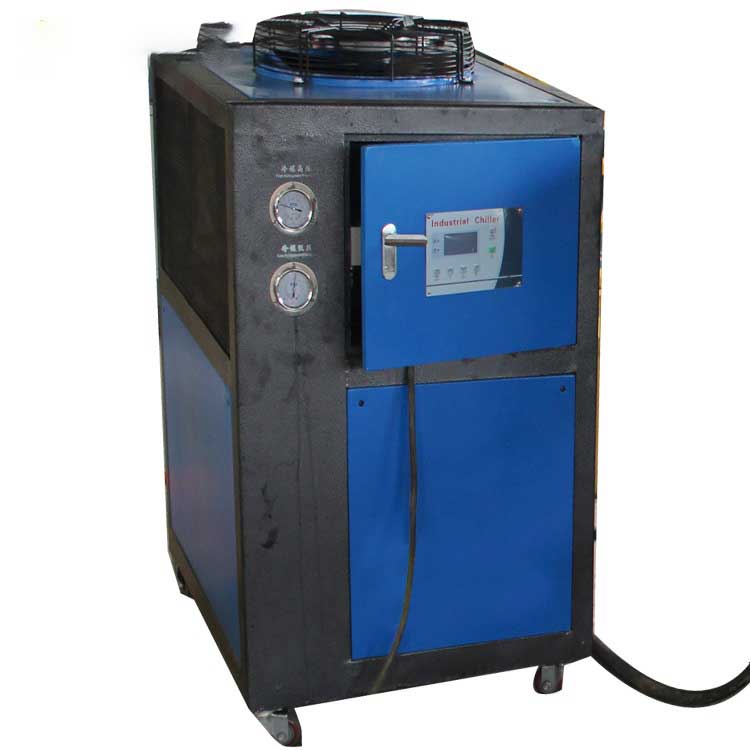

Water Cooler Tank:Keep cool the roller and not need external water more

Thermometer:Water and wax temperature are continuously under controlled by digital thermometer

Dimension of foundation sheet:Desired width is adjusted by moving the round knives as required and the lenght is adjusted by digital counter sensor on control pannel.

Power Supply:380V or 220V.3KW

Rorate speed:3r/min

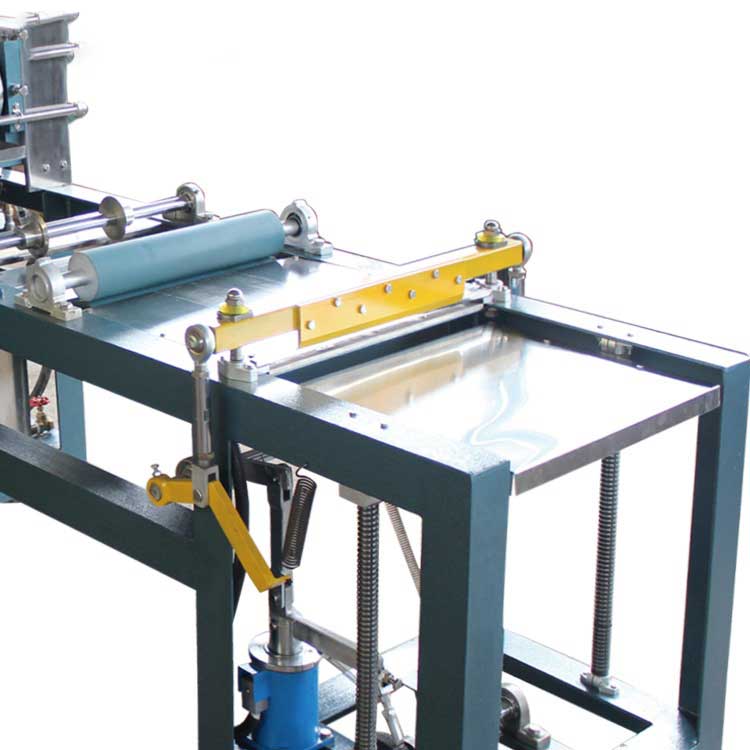

Lifting Table:The foundation sheets are stacked on a lifting table

Warranty:1 year for any damage and technical unless caused by operating errors or carelessness or negligence

Size of machine:2800*950*620mm

Weight of machine:790kg

Features & Applications of beeswax foundation machine:

1.The comb foundation mill is used for embossing plain and pure beeswax sheets.

2.With the exact cell outline of the honeycomb for fixing into the frames of a beehive.

3.Such embossed comb foundation sheet from a base for the bees to build up new combs.

4.This helps to conserve the energies of bees to secure drawn-out combs of adequate cell-size duly related to natural body-size of local races of bees.

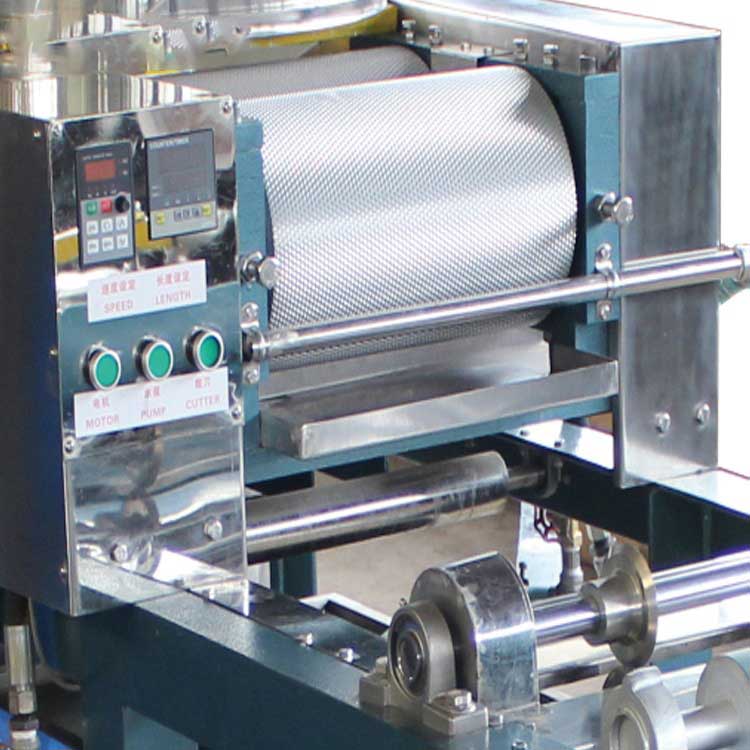

5.The main structure of the comb foundation mill consist of two rollers fixed horizontally close together in a cast iron fram.

6.The surface of these rollers has a honeycomb cell design which embosses the comb foundation sheet.

Introduction of beeswax foundation machine

Beeswax foundation machine can be called bee nest machine, comb foundation roller mill, which is made of aluminum alloy. Until now, we have manual type, electical type, table type, vertical type, semi-auto type, and automatic production line. According to your requirements, there's always best one for you. Besides, there're many other related product for beekeeping industry, which catalog is available.

1. Beeswax foundation machine is a type of beeswax coining mill machine, with a roller width of 310 mm, 250mm, and 195mm. The roller is made of high grade aluminum alloy.

2. Featured by no lead included, high precision, durable use, can product different kind of beeswax coin. The beeswax it produced have hard compact and neatly.
