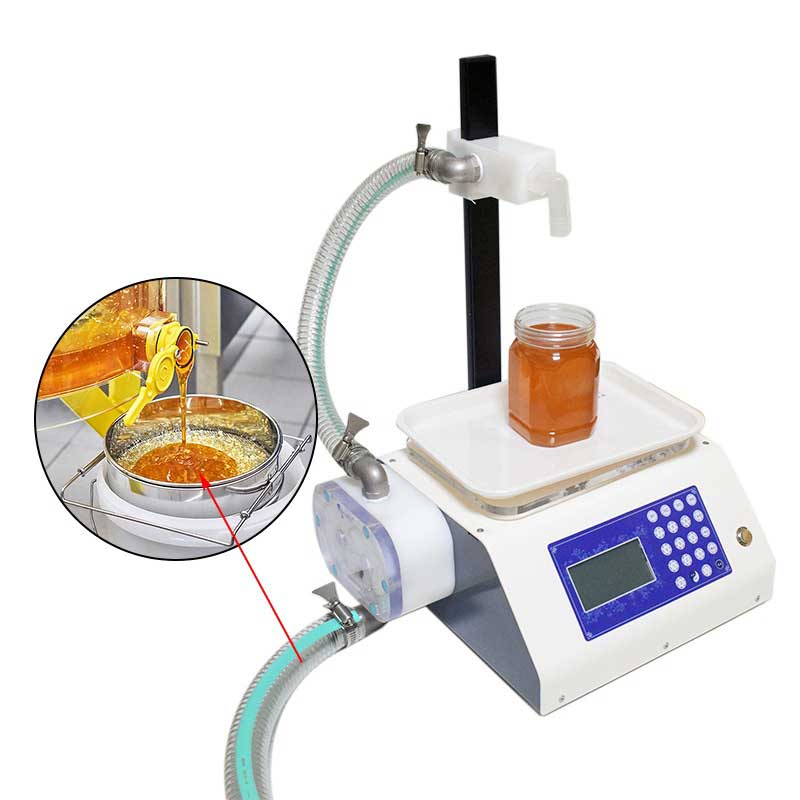

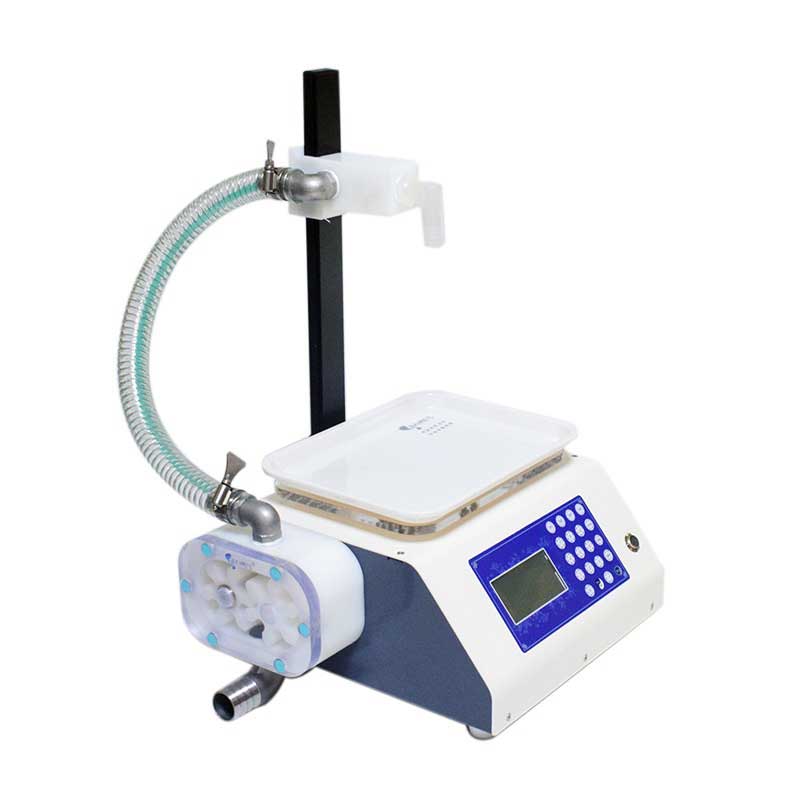

High Efficiency Paste Filling Machine Anti-drip Spout Food-degree Automatic Honey Filling Machine 100-5000g

the definition of honey filling machine:

This honey filling machine is not only suitable for honey filling,but also for water-like liquid,being non-corrosive,non-viscous, without solid particles filling. It can be widely used for filling water,beer,juice,wine.It is an ideal equipment for small batch filling or as a supplement to the automatic production line in factories.

Functions

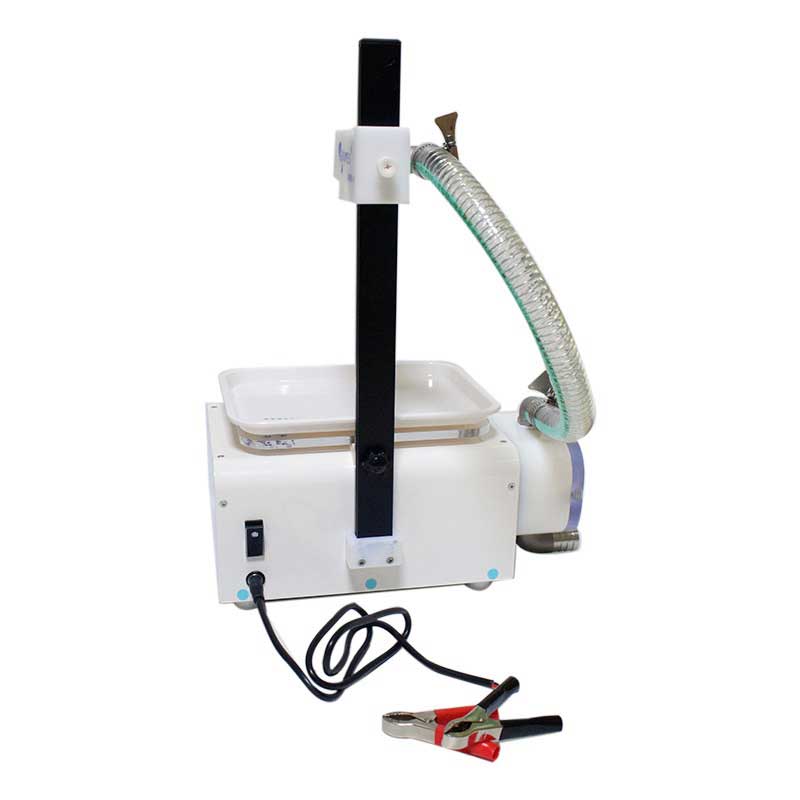

Small intelligent honey pot machine, not need the compressor air pump, not need to turn the barrel, it can be pumped after inserting the pipe. It is suitable for 38~43 Beaume degree liquid honey canning, bottling weight range of 100~5000 grams can be set freely, manual/automatic two modes, 500 grams bottle take 8 seconds, support 220V household electricity, 12V battery connection (universal), can be canned in the field, each equipment can canned 2 tons of honey every day. Low noise and convenient.

The product features of this small honey filling machine is as follows:

1. Adopt a new medical quality design concept, and the materials in contact with liquid are in line with food medical quality

2. The liquid delivery system adopts pure mechanical precision processing, which is durable and real materials.

3. Purchasing Japanese DC motors, with low noise and high efficiency.

4. The surface of the fuselage adopts baking paint treatment, and the high-end spraying process of the automobile manufacturing industry.

5. Self-developed microcomputer control system can realize real-time upgrade for customers to choose from.

6. There are many types of filling: suitable for filling all kinds of non-crystalline liquid honey below 43 Baume degrees and the ambient temperature is higher than 15℃.

7. Large filling weight range: suitable for various honey bottles (plastic, glass) from 100 to 5000 grams.

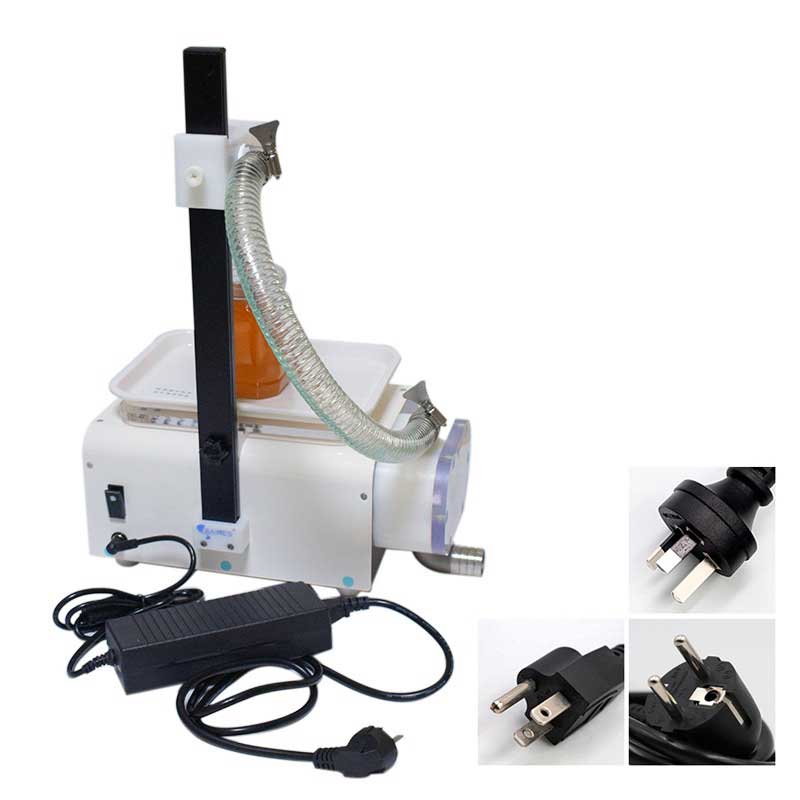

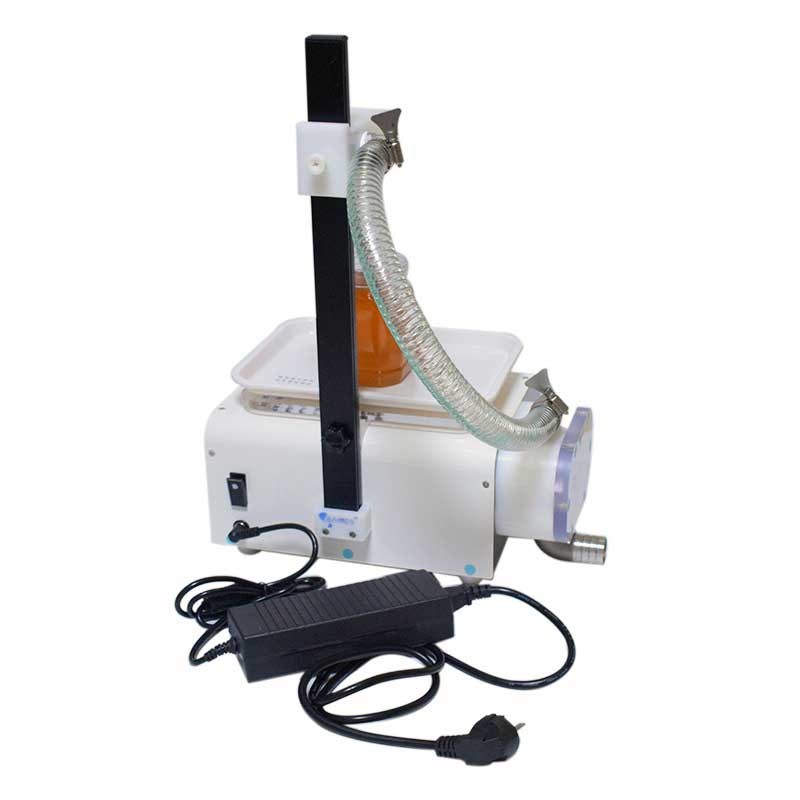

8. Suitable for various power sources: such as household electricity 220V, 110v, battery 12v, (110V needs to be customized).

9. The filling weight can be set at will: 100~5000 grams.

10. The machine comes with a permanent and daily counting function, you can check the filling times and total number of the equipment at any time.

11. Chinese and English display panels can be switched at will.

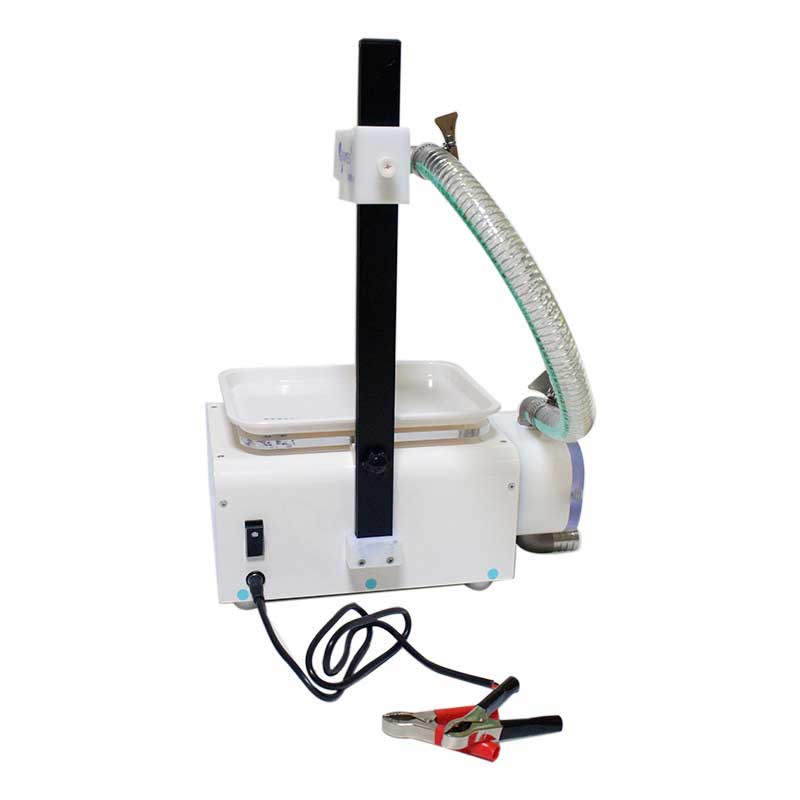

12. The equipment is portable (9KG) and equipped with a 12V battery (self-provided), which can realize field operations.Example: The 12 V 20A battery can be used for 2 to 3 hours in summer and 1 hour in winter.

13. High filling efficiency: 360 bottles per hour for 500g bottles, 240 bottles per hour for 1000g bottles, the highest accuracy is 1‰.

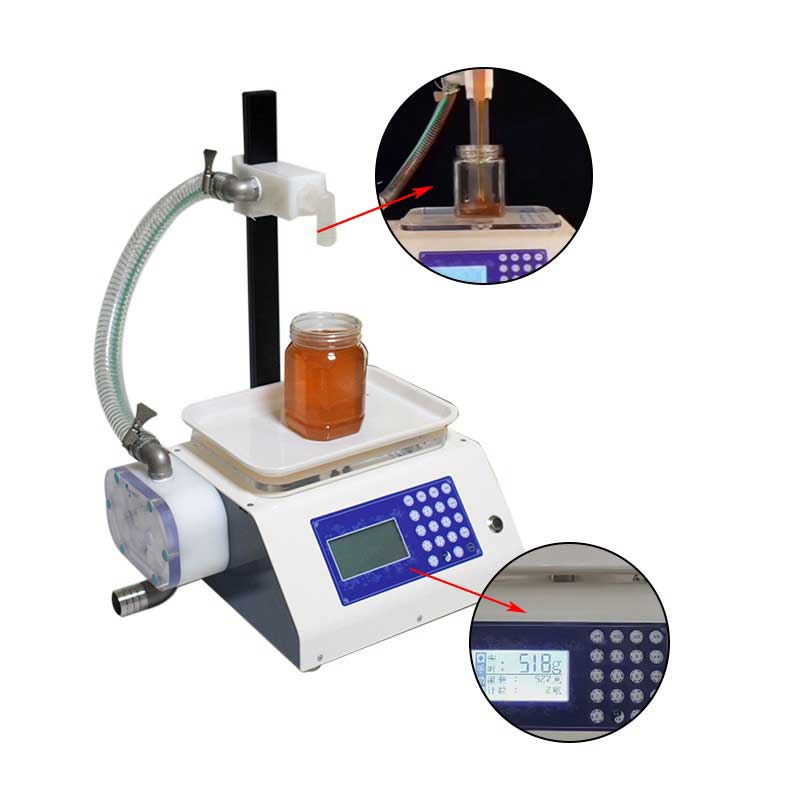

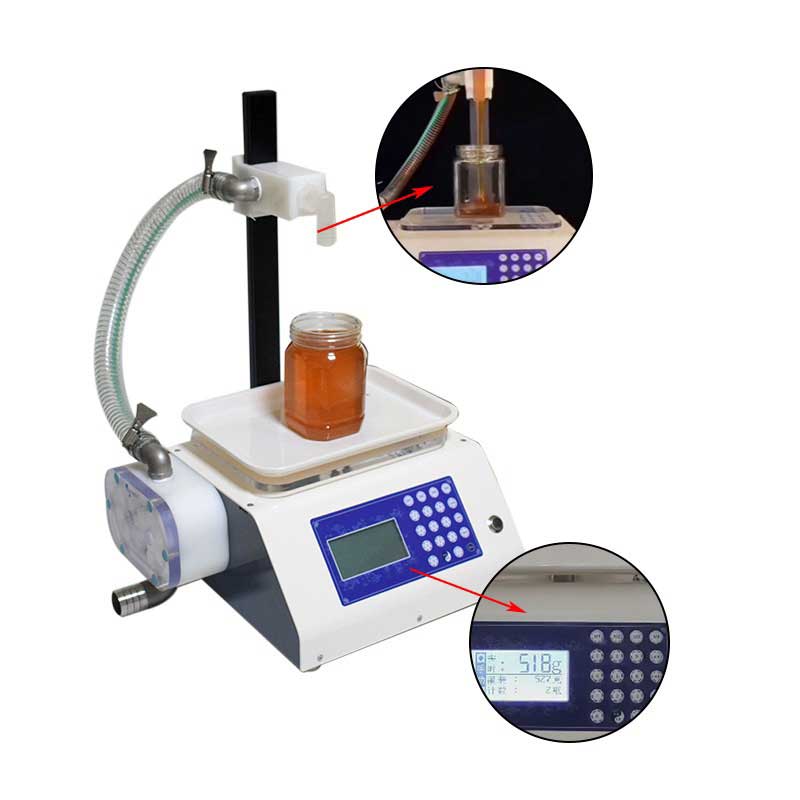

Basic buttons and parameters of the device

1.Weight shortcut keys:MI1(500g)M2(1000g)M3(2500g)M4 (5000g)

2.Tare:Press the "Tare"filling machine "real-time"weight reading is zero

3.Setting:After pressing the "setting"key,the number in the "filling"column of thedisplay screen flashes.After entering the number to be set,the cursor stopsflashing after pressing the "setting key",and then the filling weight is set Certainlycomplete.The number on the filling bar is displayed as the set weight.

4.Trigger:After pressing the "trigger"key,the numbers in the "trigger"column of the display screen will flash,enter the number 5"-15 grams less than the empty bottle weight into the flashing cursor column,and the cursor will stop when you press "trigger"Flashing,the trigger value setting is now complete.

5.Cleaning:Press the "clean"button and the equipment is reversed,

and the honey in the pipeline is pumped back into the honey bucket.

6.Automatic mode:switch to "automatic mode"by pressing the Tai Chi pattern.

7.Manual mode:Press the Tai Chi pattern to switch to "manual mode".

this is our new design product,if you are interested in it,pls contact with me.
